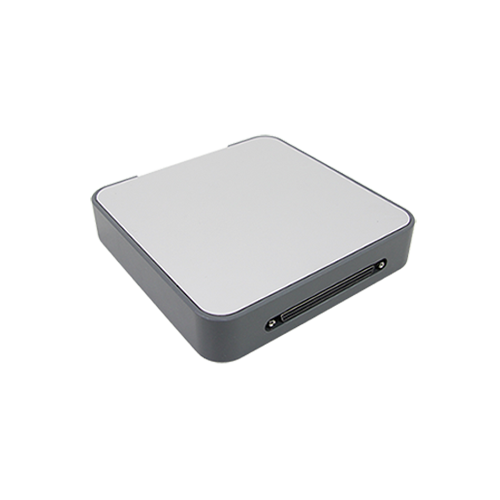

  • TL-SCB-100A Terminal Block

  • TL-SCB-100A Terminal Block

    SCSI100 male to 100 PIN screw terminal，shielded I/O connector terminal block

    • ￥0.00
      ￥0.00
    • Quantity：
    • Request a quote
Product Description

SCSI100 male to 100 PIN screw terminal，shielded I/O connector terminal block

SCSI100 male to 100 PIN screw terminal，shielded I/O connector terminal block.TL-SCB-100A is used for connecting signals to data acquisition equipment.When used in conjunction with shielded cables,it provides a robust and protected signal connection. Its housing features a removable magnetic cover and a pin connection diagram. The terminal block can be installed via panel mounting, wall mounting, or DIN rail mounting.



General

Operating Current1 A
Operating Voltage250 V



Connector

ConnectorSCSI100 female
Conductor MaterialGold-plated
Contact Resistance≤35 mΩ
Side Screws2#-56



Terminal block

Connection TypeScrew clamp
Conductor Cross-Sectional Area0.2–0.25 mm²
Screw Torque0.5–0.6 N·m
Contact MaterialTin-plated copper


Enclosure

Main Body MaterialAluminum alloy
Dimensions (including legs)14.7 x 14.7 x 3.0 cm
Weight650 g




    Drawing


     Manual
