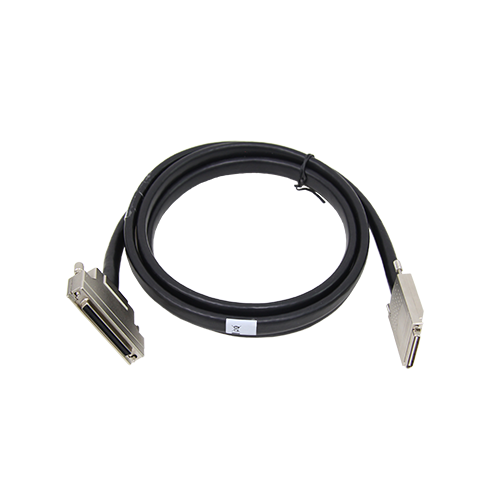

  • TL-SHC68-68-RMIO Shielded Multifunction Cable

  • TL-SHC68-68-RMIO Shielded Multifunction Cable

    VHDCI68 female to SCSI68 male，shielded multifunction cable

    • ￥0.00
      ￥0.00
    • Quantity：
    • Request a quote
Product Description

VHDCI68 female to SCSI68 male，shielded multifunction cable

VHDCI68 female to SCSI68 male，shielded multifunction cable，designed for connecting to the terminal block of reconfigurable I/O (RIO) devices. The cable is also available in multiple length options.



General

Operating Current0.5 A
Operating Voltage30 V



Connector A

ConnectorVHDCI68 female
Conductor MaterialGold-plated copper
Contact Resistance≤35 mΩ
Side ScrewsM2.0



Connector B

ConnectorSCSI68 male
Conductor MaterialGold-plated copper
Contact Resistance≤35 mΩ
Side Screws2#-56





Wire

Cable TypeShielded twisted pair
Conductor MaterialTin-plated copper
Stranding7/0.12(28 AWG)
Wire Resistance0.4 Ω/m(28 AWG)
Conductor InsulationPP
Jacket MaterialPVC
Cable O/D9 mm


TL-SHC68-68-RMIO-01          1 m

TL-SHC68-68-RMIO-02          2 m

TL-SHC68-68-RMIO-XX         Customized Length
