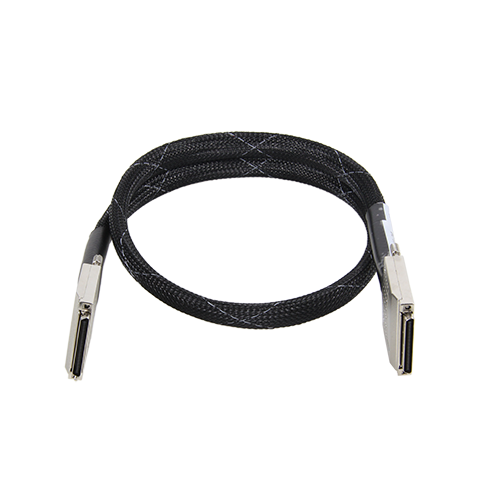

  • TL-SHC68-C68-D4 Shielded Digital Cable

  • TL-SHC68-C68-D4 Shielded Digital Cable

    • ￥0.00
      ￥0.00
    • Quantity：
    • Request a quote
Product Description

VHDCI68 male to VHDCI68 male, 50Ω, shielded digital cable.It is also compatible with specific digital I/O adapter modules for FlexRIO, digitizer adapter modules for FlexRIO, and signal generator adapter modules for FlexRIO, as well as high-speed serial instruments.Therefore, this digital cable offers flexible connectivity for various custom test fixtures and other equipment.




General

Operating Current0.5 A
Operating Voltage30 V
Characteristic impedance50 Ω



Connector A/B

ConnectorVHDCI68 male
Conductor MaterialGold-plated copper
Contact Resistance≤35 mΩ
Side ScrewsM2.0





Wire

Cable Type50Ω coaxial cable
Conductor MaterialTin-plated copper
Stranding7/0.12(28 AWG)
Wire Resistance0.4 Ω/m(28 AWG)
Conductor InsulationPP
Jacket MaterialPVC
Cable O/D11.0 mm
