Home >> Cables >> 68 PIN >> TL-SHC68-68-EPM-FL Shielded Multifunction Cable

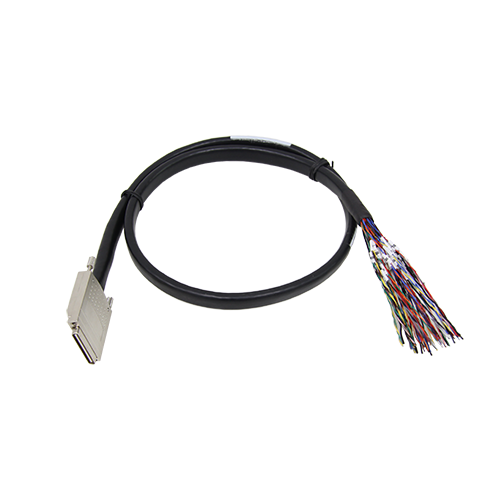

  • TL-SHC68-68-EPM-FL Shielded Multifunction Cable

  • TL-SHC68-68-EPM-FL Shielded Multifunction Cable

    VHDCI68 male to loose wires, twisted pair, shielded multifunction cable

    • ￥0.00
      ￥0.00
    • Quantity：
    • Request a quote
Product Description

VHDCI68 male to loose wires, twisted pair, shielded multifunction cable

VHDCI68 male to loose wires, twisted pair, shielded multifunction cable.This cable is used to connect DAQ devices to accessories or cables equipped with D-sub connectors. It allows for the customization of connection cables for DAQ equipment and is available in various lengths.



General

Operating Current0.5 A
Operating Voltage30 V



Connector A

ConnectorVHDCI68 male
Conductor MaterialGold-plated copper
Contact Resistance≤35 mΩ
Side ScrewsM2


Connector B

End PreparationWire marking included
Connection MethodCrimp/Solder





Wire

Cable TypeShielded twisted pair
Conductor MaterialCopper
Stranding7/0.1(30)，7/0.16(26)
Wire Resistance0.4 Ω/m(30)，0.2 Ω/m(26)
Conductor InsulationPP
Jacket MaterialPVC
Cable O/D9*14 mm



TL-SHC68-68-EPM-FL-01          1 m

TL-SHC68-68-EPM-FL-02          2 m

TL-SHC68-68-EPM-FL-XX         Customized Length
