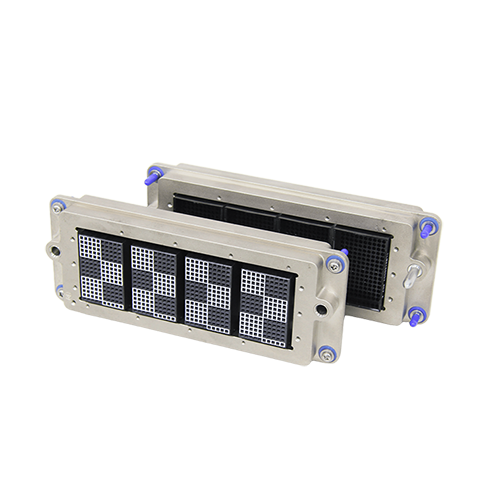

  • FD3/FD4-3 or 4 module automatic docking connectors

  • FD3/FD4-3 or 4 module automatic docking connectors

    3 or 4 module solution, engages up to 672 signal contacts simultaneously.

    • ￥0.00
      ￥0.00
    • Quantity：
    • Request a quote
Product Description

3 or 4 module solution, engages up to 672 signal contacts simultaneously.

Up to 4-module solution, engages up to 672 signal contacts simultaneously.

  • The receiver and adapter utilize a non-engaging frame design, making them suitable for use in automatic docking mechanisms.

  • FD3/FD4 can accommodate up to 4 T series square modules with 640 signal contacts, or 3 90 Series modules with 672 signal contacts.

  • The modules support various signal types including signal, power, coaxial, pneumatic, fiber optic, and high-speed, and can be configured in hybrid combinations.

  • Both the receiver and adapter are equipped with radial float assemblies, enabling automatic self-alignment after a maximum float displacement of 1mm.

  • The multi-curvature pin-and-socket structure ensures a high durability of up to 100,000 mating cycles.

  • Automatic docking devices are widely used in unattended test processes.


Receiver

  • TLFD03101：Receiver, 3 90 Series Modules or 4 T Series Square Modules, FD3

ITA

  • TLFD03201：ITA, 3 90 Series Modules or 4 T Series  Square Modules, FD3

Accessory

  • TLM010001：Strain Relief Plate, Receiver, QuadraPaddle, 192 Position

  • TLM010002：Strain Relief Plate, Receiver, QuadraPaddle, 480 Position

  • TLM010003：Strain Relief Plate, Receiver,  90 Series Modules , Plate-shaped

  • TLM010004：Strain Relief Plate, Receiver,  90 Series Modules , L-shaped

  • TLM010005：Strain Relief Plate, ITA,  90 Series Modules

  • TLM010008：Strain Relief Plate, Receiver, 90 Series Modules,  Micro Power/Coax, 50 Position

  • TLM010009：Strain Relief Plate, ITA, Micro Coax, 50 Position

  • TLM030001：Strain Relief Plate, Receiver/ITA, SIM, for wired solutions
