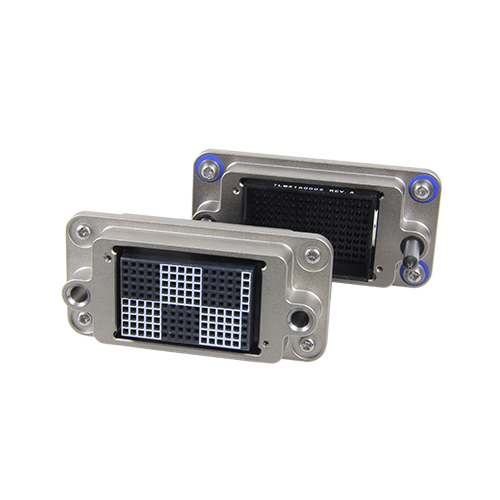

  • FD1-1 module automatic docking connectors

  • FD1-1 module automatic docking connectors

    1module solution, engages up to 160 signal contacts simultaneously.

    • ￥0.00
      ￥0.00
    • Quantity：
    • Request a quote
Product Description

1module solution, engages up to 160 signal contacts simultaneously.

1 module solution, engages up to 160 signal contacts simultaneously.

  • The receiver and adapter utilize a non-engaging frame design, making them suitable for use in automatic docking mechanisms.

  • Featuring a single-cavity design, the system can accommodate up to 160 I/O signals while maintaining an overall height of less than 1U.

  • The modules support various signal types including signal, power, coaxial, pneumatic, fiber optic, and high-speed, and can be configured in hybrid combinations.

  • Both the receiver and adapter are equipped with radial float assemblies, enabling automatic self-alignment after a maximum float displacement of 1mm.

  • The multi-curvature pin-and-socket structure ensures a high durability of up to 100,000 mating cycles.

  • Automatic docking devices are widely used in unattended test processes.


Receiver

  • TLFD01101：Receiver, 1  T Series Square Module, FD1

ITA

  • TLFD01201：ITA, 1 T Series Square Module, FD1

Accessory

  • TLM020004：Strain Relief Plate, Receiver/ITA, T1/FD1
