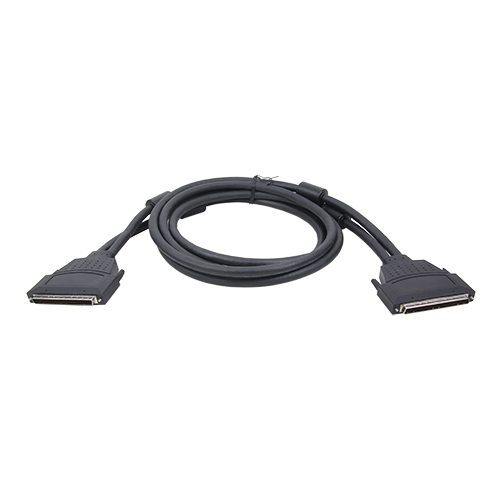

  • TL-SH100M-100M-FLEX Shielded Multifunction Cable

  • TL-SH100M-100M-FLEX Shielded Multifunction Cable

    SCSI100 male to SCSI100 male connectors, twisted pair, shielded multifunction cable

    • ￥0.00
      ￥0.00
    • Quantity：
    • Request a quote
Product Description

SCSI100 male to SCSI100 male connectors, twisted pair, shielded multifunction cable

SCSI100 male to SCSI100 male connectors, twisted pair, shielded multifunction cable.For connecting digital I/O devices to 100 PIN accessories with SCSI connectors.




General

Operating Current0.5 A
Operating Voltage30 V



Connector A/B

ConnectorVHDCI100 male
Conductor MaterialGold-plated copper
Contact Resistance≤35 mΩ
Side Screws2#-56





Wire

Cable TypeShielded twisted pair
Conductor MaterialTin-plated copper
Stranding7/0.12(28 AWG)
Wire Resistance0.4 Ω/m(28 AWG)
Conductor InsulationPP
Jacket MaterialPVC
Cable O/D8.0 mm



TL-SH100M-100M-FLEX-01          1 m

TL-SH100M-100M-FLEX-02           2 m

TL-SH100M-100M-FLEX-XX         Customized Length
