Home >> Cables >> 68 PIN >> TL-SCB-68A Terminal Block

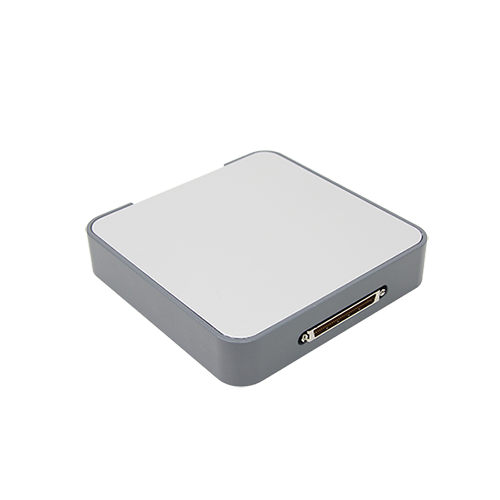

  • TL-SCB-68A Terminal Block

  • TL-SCB-68A Terminal Block

    SCSI68 male to 68 PIN screw terminal，shieldedI/O connector terminal block.

    • ￥0.00
      ￥0.00
    • Quantity：
    • Request a quote
Product Description

SCSI68 male to 68 PIN screw terminal，shieldedI/O connector terminal block.

SCSI68 male to 68 PIN screw terminal，shieldedI/O connector terminal block.

TL-SCB-68A is a shielded terminal block used for connecting signals to data acquisition equipment.When used in conjunction with shielded cables,it provides a robust and protected signal connection. Its housing features a  removable magnetic cover and a pin connection diagram. The terminal block can be installed via panel mounting, wall mounting,or DIN rail mounting.



General

Operating Current1 A
Operating Voltage250 V



Connector

ConnectorSCSI68 male
Conductor MaterialGold-plated
Contact Resistance≤35 mΩ
Side Screws2#-56



Terminal block

Connection TypeScrew clamp
Conductor Cross-Sectional Area0.2–0.25 mm²
Screw Torque0.5–0.6 N·m
Contact MaterialTin-plated copper


Enclosure

Main Body MaterialAluminum alloy
Dimensions (including legs)14.7 x 14.7 x 3.0 cm
Weight650 g



    Drawing


     Manual
