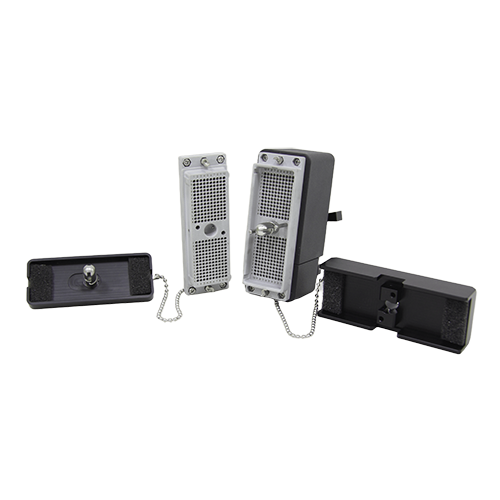

TIF260 Series Connector-260 Signal Contacts
High-density rectangular connectors featuring a double helix quick-lock mechanism for smoother mating. We provide 156 and 260 I/O signals and are widely applicable in automotive electronics, rail transportation, medical devices, semiconductors, military, and other fields.
TIF series connectors are high-density, low insertion force connectors capable of withstanding over 10,000 mating cycles.
The connector pins adopt the 22D specification, aligning with aviation connector standards.
The main body is made of thermoset composite material, offering excellent insulation and electrical performance.
The contact system employs a pin-and-socket structure, enabling self-cleaning contact surfaces with full gold plating.
It supports both panel-mount with wire clamping and PCB-fixed installation methods.
The metal alloy shell allows for flexible configuration with either bottom exit or horizontal exit cable orientations.
Socket
TLM5101260：Socket, 260 Position, Crimp
TLM5131260：Socket, 260 Position, PCB(Full-configuration contact)
Plug
TLM5201260：Plug, 260 Position, Crimp
Contact-Socket
TLC110005：Signal, Contact, Socket, 20-24AWG, 1mm, Crimp, TIF Series
TLC114005：Signal, Contact, Socket, PCB, TIF Series
Contact-ITA
TLC121005：Signal, Contact, Plug, 20-24AWG, 1mm, Crimp, TIF Series
Accessory
TLM5121260：Protective Cover, Socket, 260 Position, TIF260 Series
TLM5211260：Protective Cover, Plug, 260 Position, TIF260 Series
TLM5321260：Backshell, Plug, 260 Position，Metal, Straight, TIF260 Series
TLM5331260：Backshell, Plug, 260 Position，Metal, TIF260 Series
TLM5101090-02：Keying Pin Kit, Socket/Plug, TIF Series
TLM010008：Strain Relief Plate
