Home >> Handheld Connector >> TIF Series >> TIF156 Series Connector-156 Signal Contacts

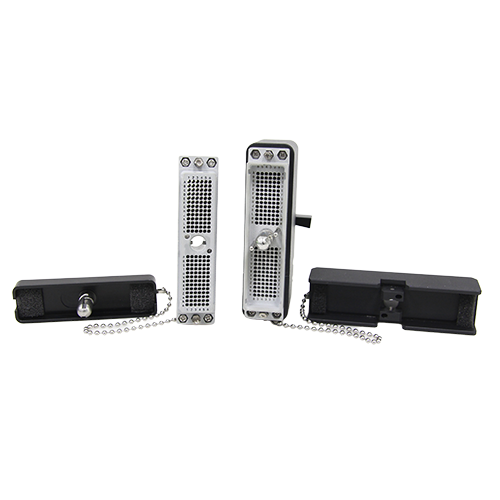

  • TIF156 Series Connector-156 Signal Contacts

  • TIF156 Series Connector-156 Signal Contacts

    • ￥0.00
      ￥0.00
    • Quantity：
    • Request a quote
Product Description

High-density rectangular connectors featuring a double helix quick-lock mechanism for smoother mating. We provide 156 and 260 I/O signals and are widely applicable in automotive electronics, rail transportation, medical devices, semiconductors, military, and other fields.

  • TIF series connectors are high-density, low insertion force connectors capable of withstanding over 10,000 mating cycles.

  • The connector pins adopt the 22D specification, aligning with aviation connector standards.

  • The main body is made of thermoset composite material, offering excellent insulation and electrical performance.

  • The contact system employs a pin-and-socket structure, enabling self-cleaning contact surfaces with full gold plating.

  • It supports both panel-mount with wire clamping and PCB-fixed installation methods.

  • The metal alloy shell allows for flexible configuration with either bottom exit or horizontal exit cable orientations.


Socket

  • TLM5101156：Socket, 156 Position, Crimp

  • TLM5111156：Socket, 156 Position, PCB(Full-configuration contact)

Plug

  • TLM5201156：Plug, 156 Position, Crimp

Contact-Socket

  • TLC110005：Signal, Contact, Socket, 20-24AWG, 1mm, Crimp, TIF Series

  • TLC114005：Signal, Contact, Socket, PCB, TIF Series

Contact-ITA

    • TLC121005：Signal, Contact, Plug, 20-24AWG, 1mm, Crimp, TIF Series

Accessory

  • TLM5121156：Protective Cover, Socket, 156 Position, TIF156 Series

  • TLM5211156：Protective Cover, Plug, 156 Position, TIF156 Series

  • TLM5321156：Backshell, Plug, 156 Position，Metal, Straight, TIF156 Series

  • TLM5331156：Backshell, Plug, 156 Position，Metal, TIF156 Series

  • TLM5101090-02：Keying Pin Kit, Socket/Plug, TIF Series

  • TLM010008：Strain Relief Plate
