Home >> Cables >> GMCT20 Series >> GMCT20FC-A/B GMCT20 Female With Tail Attachment
  • GMCT20FC-A/B GMCT20 Female With Tail Attachment

  • GMCT20FC-A/B GMCT20 Female With Tail Attachment

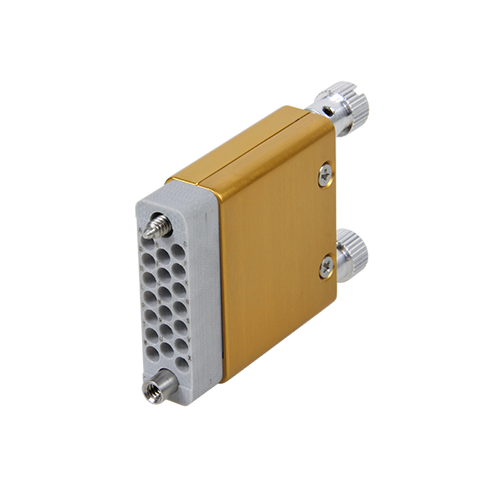

    GMCT 20PIN Female,10A~16A,With cable clamp in backshell

    • ￥0.00
      ￥0.00
    • Quantity：
    • Request a quote
Product Description

GMCT 20PIN Female,10A~16A,With cable clamp in backshell

Designed for power cable interfaces, this connector allows direct cable termination by soldering. It features removable solder-type contacts that accommodate wires up to 14 AWG, and includes a back shell with a screw-locking mechanism and a cable clamp.

  • With cable clamp in backshell

  • Soldered cable termination








Connector

Connector TypeGMCT 20PIN female
Operating Current10 A~16 A
Operating Voltage500 VAC
Contact Resistance3 mΩ
Contact MaterialGold plated copper
Cable Securing Method6-32 UNC
Wire ConnectionSolder
Cable ExitRear
Cable Exit Size20.4 x 12 mm
Overall Size (Approx)H40 x W20 x D62 mm
Recommended InsulationPTFE
Additional Cable ClampYes(located inside the back shell)
WireMaximum Wire Size14 AWG
Recommended Wire Strip Length for Soldering5 mm



GMCT20FC-A         16A

GMCT20FC-B         10A
